Ubiquiti airMAX Rocket AC Lite

Product Specifications

Physical

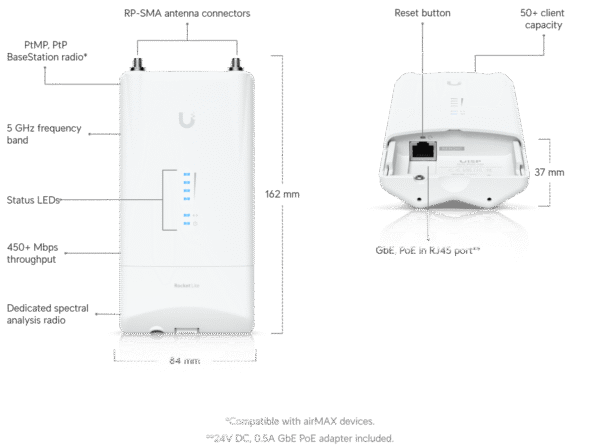

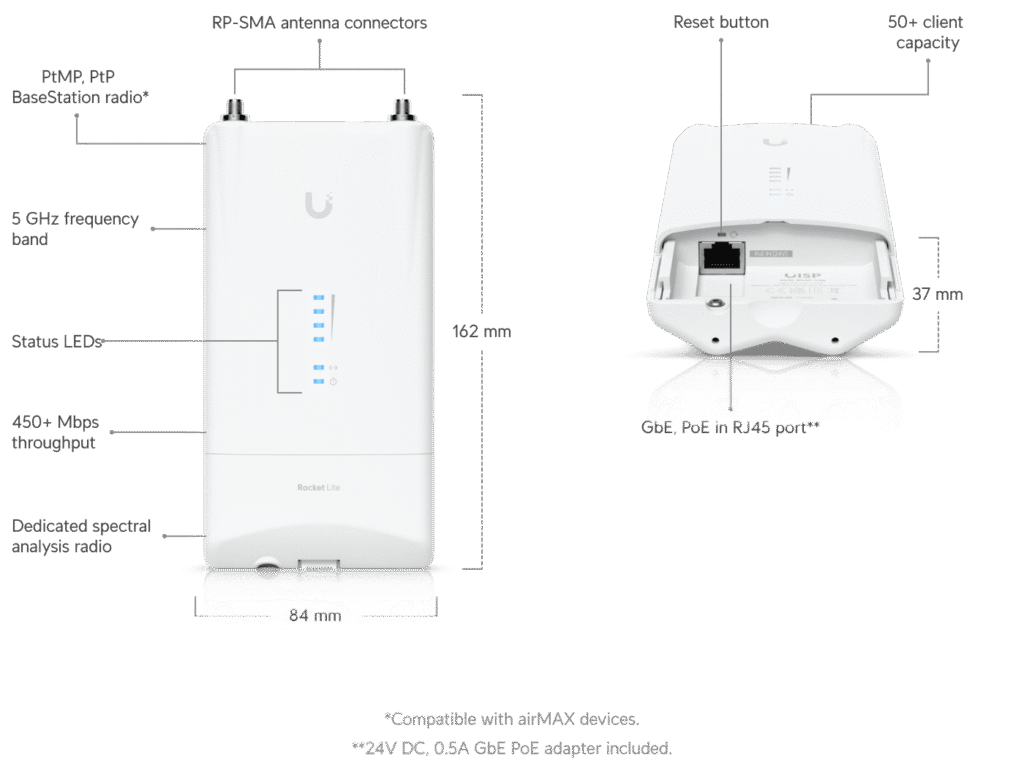

• Dimensions: 162 x 84 x 37 mm (6.4 x 3.3 x 1.5″)

• Weight: 250 g (8.8 oz)

• Enclosure Materials: UV-stabilized polycarbonate

Hardware

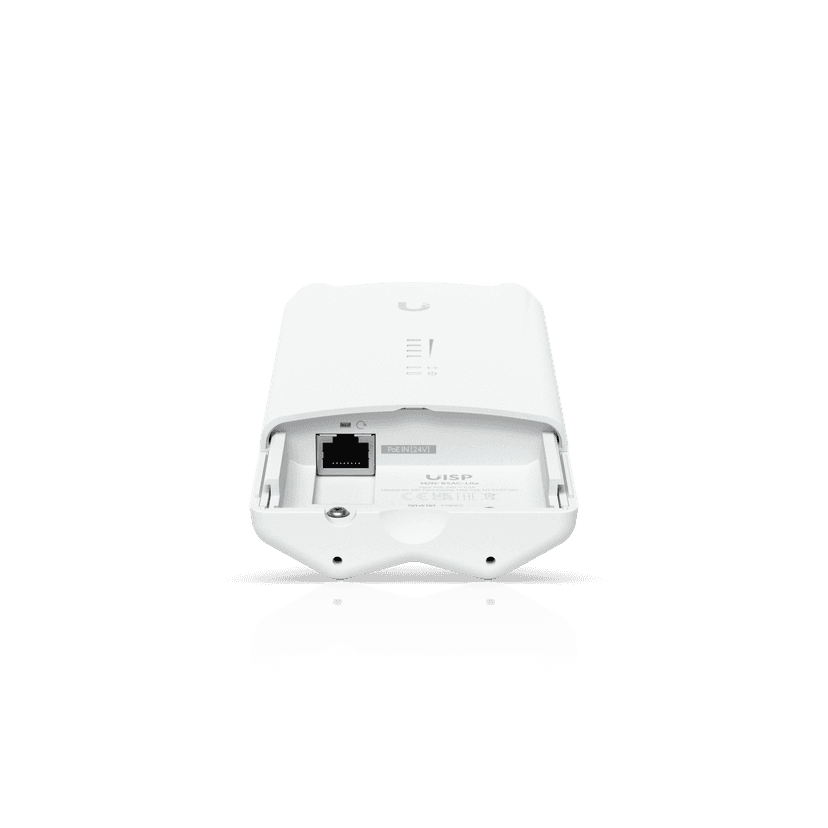

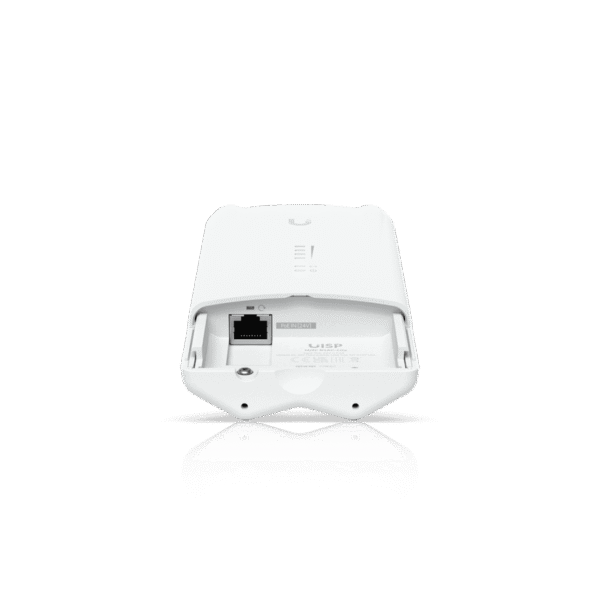

• Networking Interface: 1 × GbE RJ45 port

• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)

• Power Supply: 24V, 0.5A gigabit PoE adapter (Included)

• Supported Voltage Range: 20–27V DC

• Max. Power Consumption: 8.5W

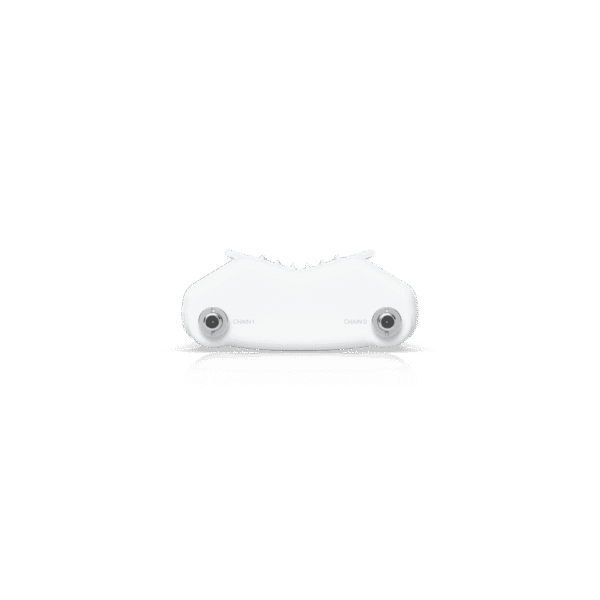

• RF Connections: 2 × RP-SMA (Waterproof)

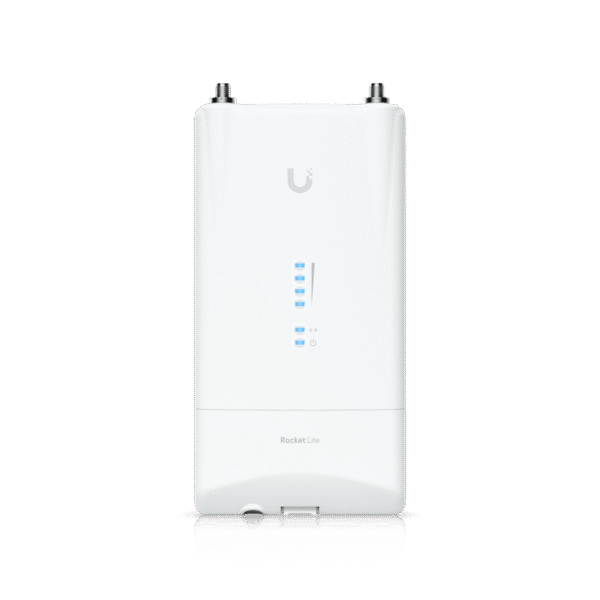

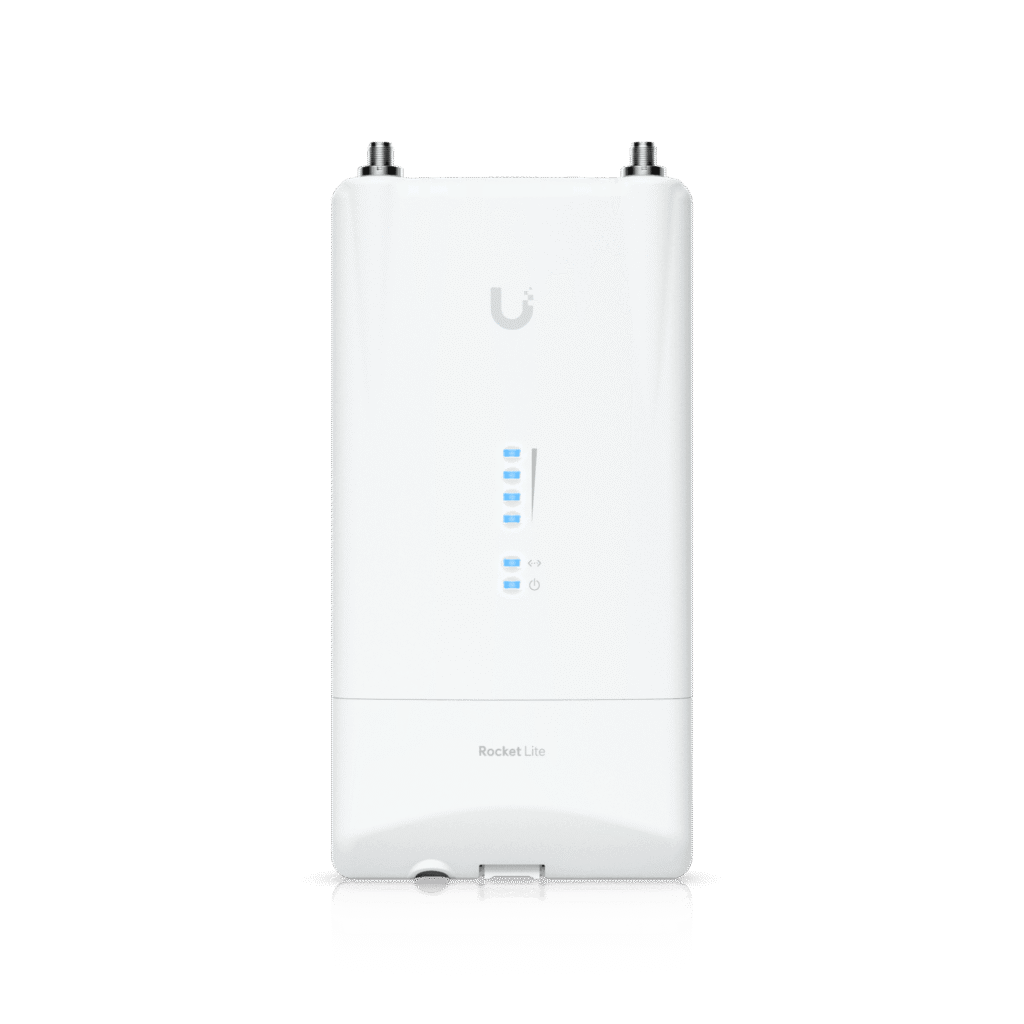

• LEDs: Signal Strength, Power, LAN

• Ambient Operating Temperature: -40 to 80° C (-40 to 176° F)

• Ambient Operating Humidity: 5 to 95% non‑condensing

• NDAA Compliant: ✓

• Shock and Vibration Certification: ETSI300-019-1.4

• Certifications: CE, FCC, IC, Anatel: 02861-15-08356

Software

• Operating Modes: Access Point, Station

• Ubiquiti Specific Features: airMAX AC Mode, Discovery Protocol, Frequency Band Offset, Traffic Shaping with Burst Support, 30/50/60 MHz Channels

• Services: Bridging, DHCP, Ping Watchdog, Routing, SNMP, SSH, Webserver

• Distance Adjustment: Ackless Mode, Dynamic Ack

• QoS: WMM packet classification with user-level priority (High, Medium, Low)

• Statistical Reporting: Data Rates, Ethernet Link Rate, Packet Errors, Up Time, Wireless Distance

Radio Frequency

• Supported Frequency Range (Worldwide): 5150–5875 MHz

• US/CA (U‑NII‑1): 5150–5250 MHz

• US/CA (U‑NII‑2A): 5250–5350 MHz

• US/CA (U‑NII‑2C): 5470–5725 MHz

• US/CA (U‑NII‑3): 5725–5850 MHz
