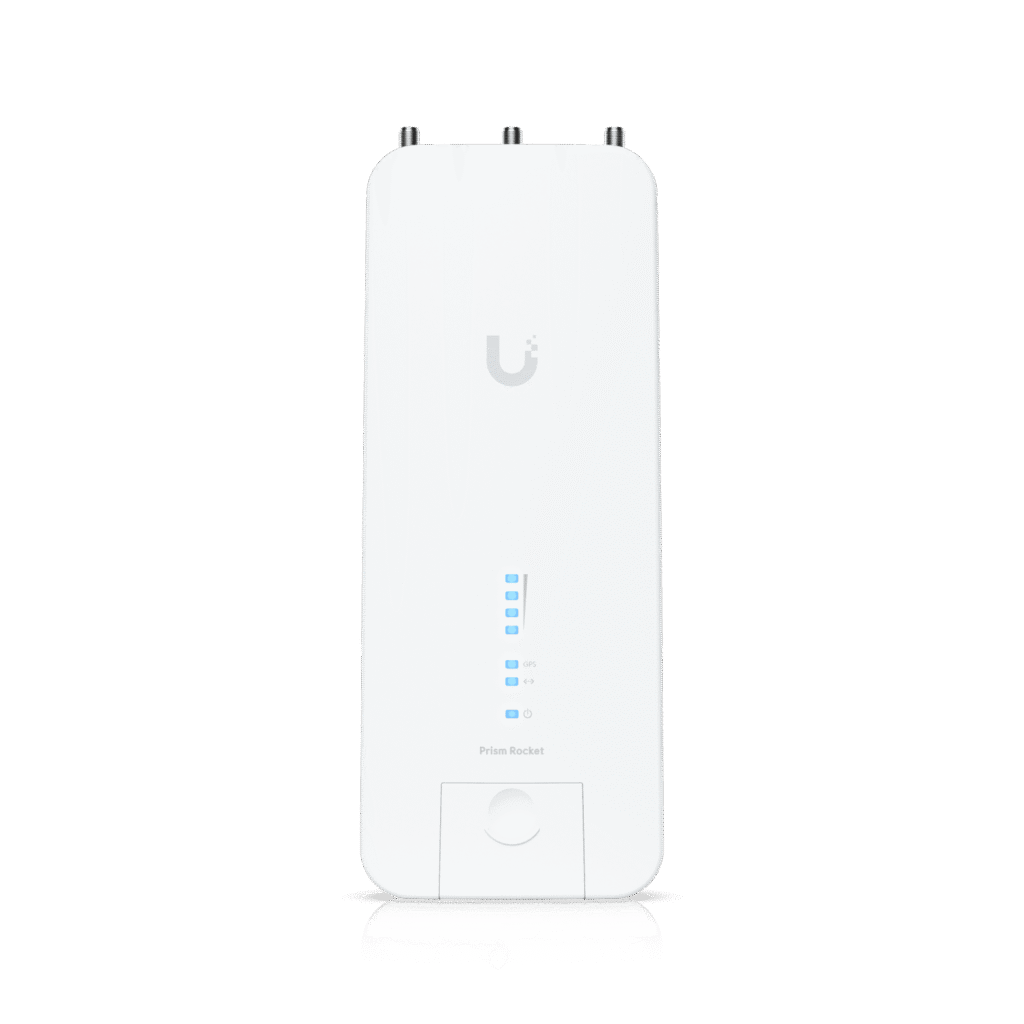

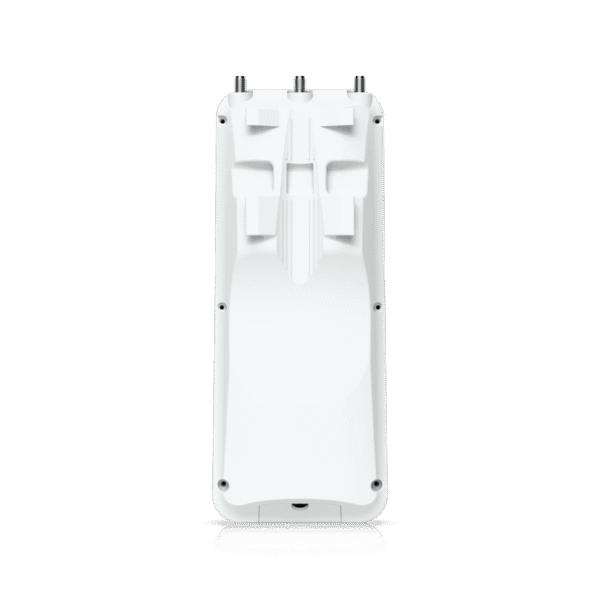

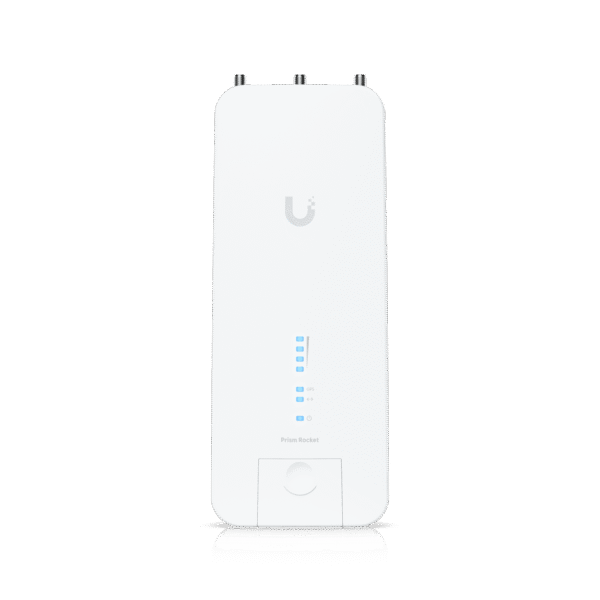

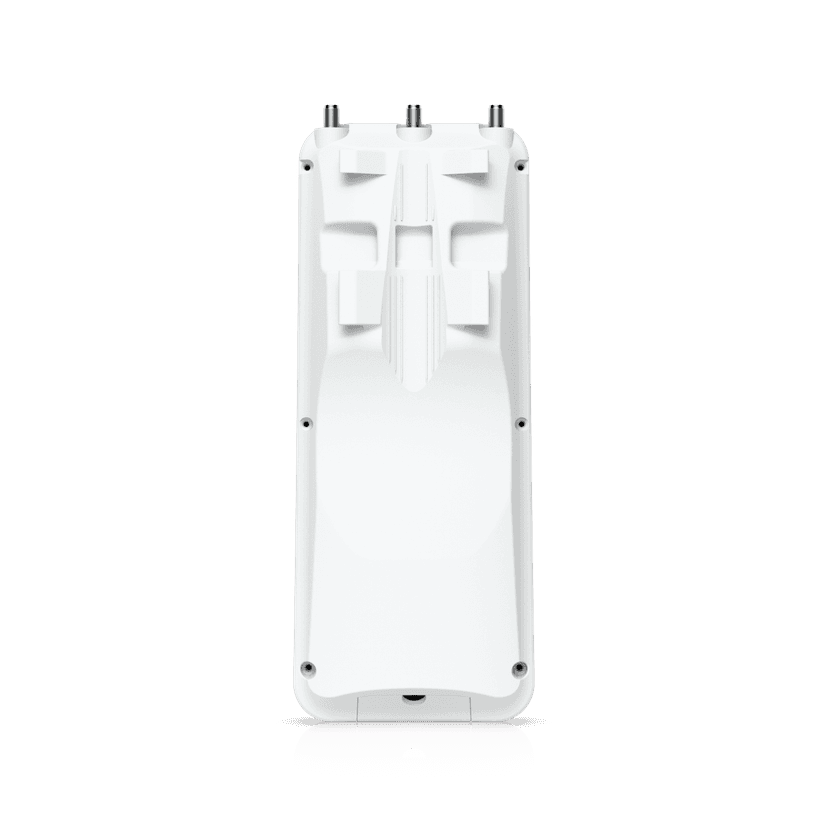

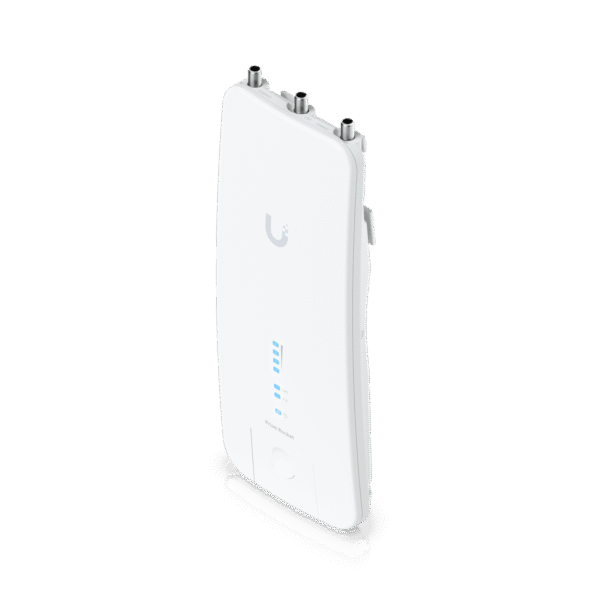

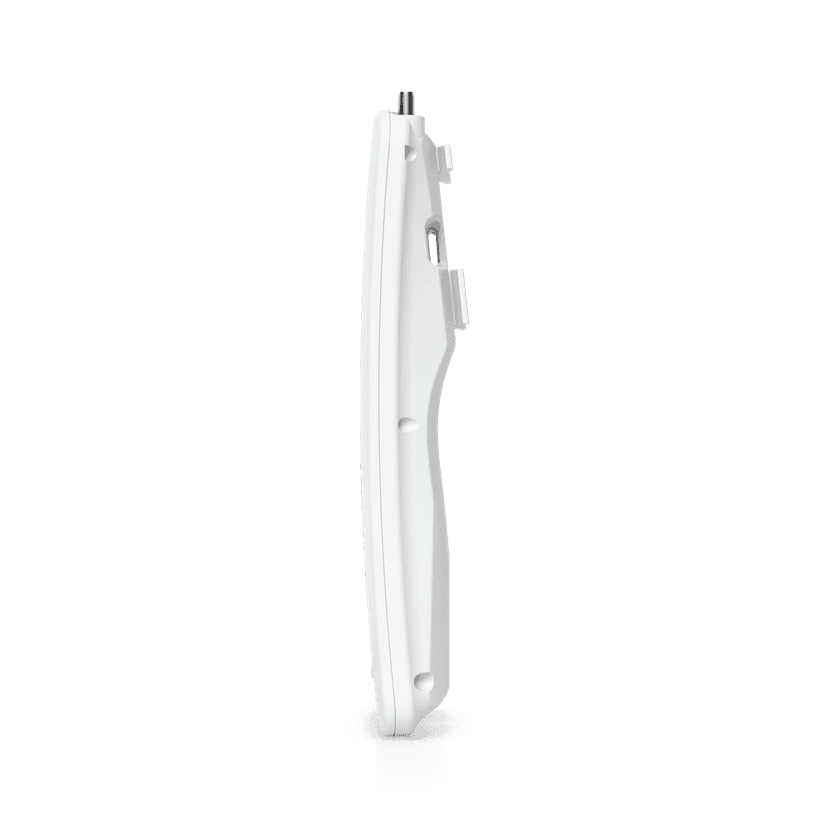

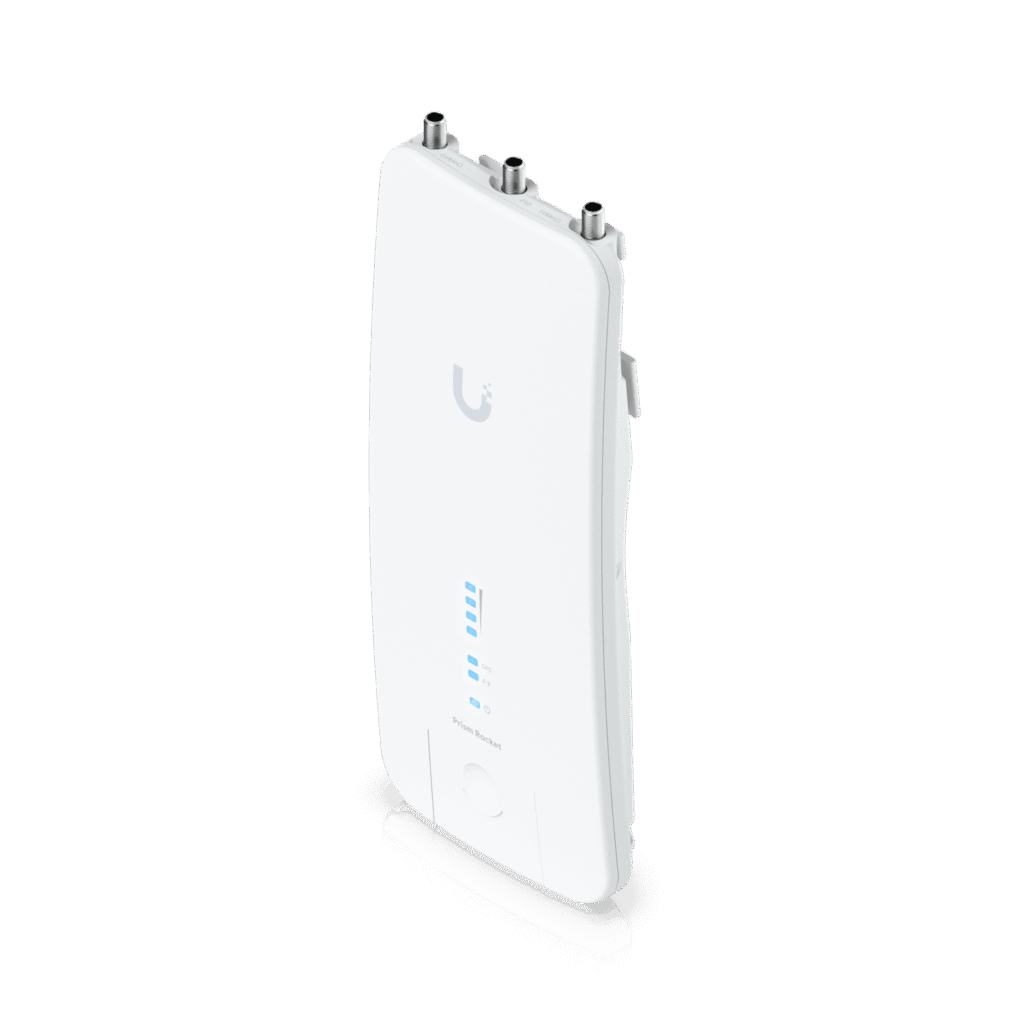

Ubiquiti airMAX Rocket Prism 5AC

Product Specifications

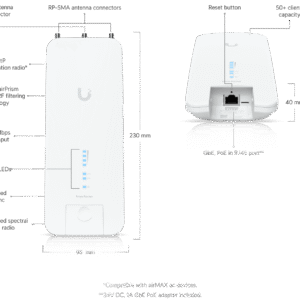

Dimensions & Physical

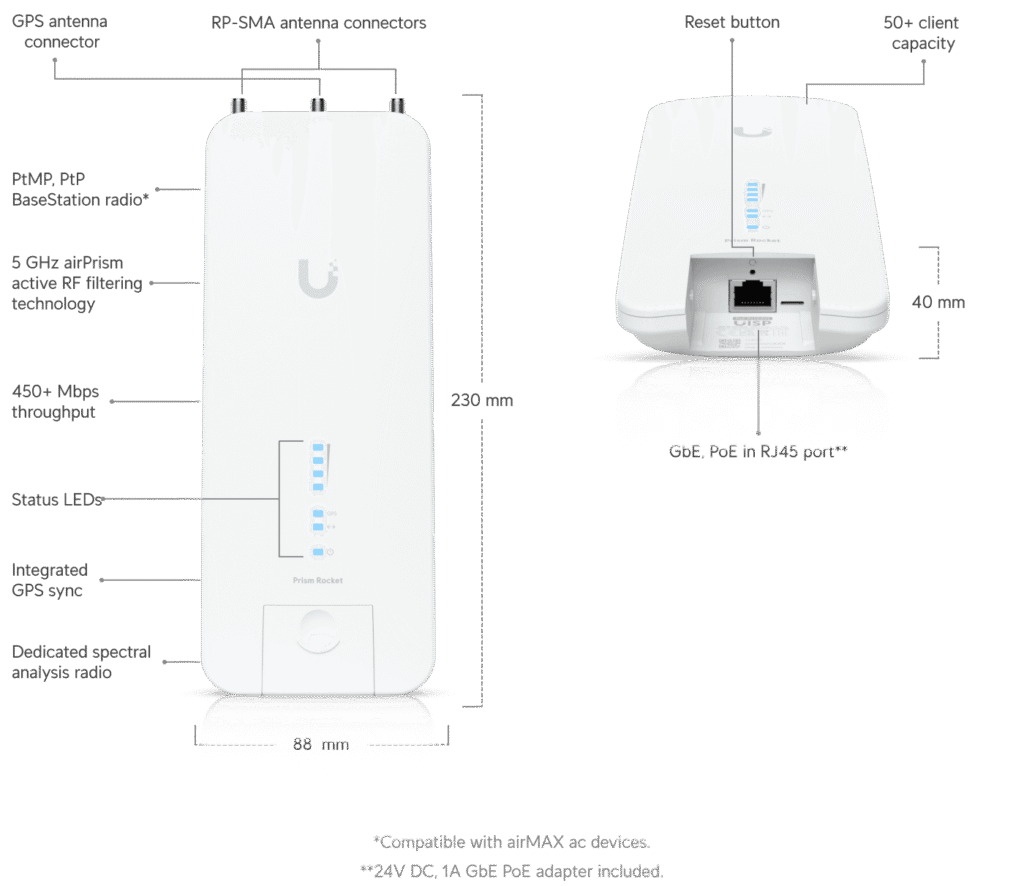

• Dimensions: 88 x 40 x 230 mm (3.5 x 1.6 x 9.1″)

• Weight: 400 g (14.1 oz)

• Enclosure Materials: Die‑cast aluminum

• Wind Loading: 342.5 N at 200 km/h (77 lbf at 125 mph)

Hardware

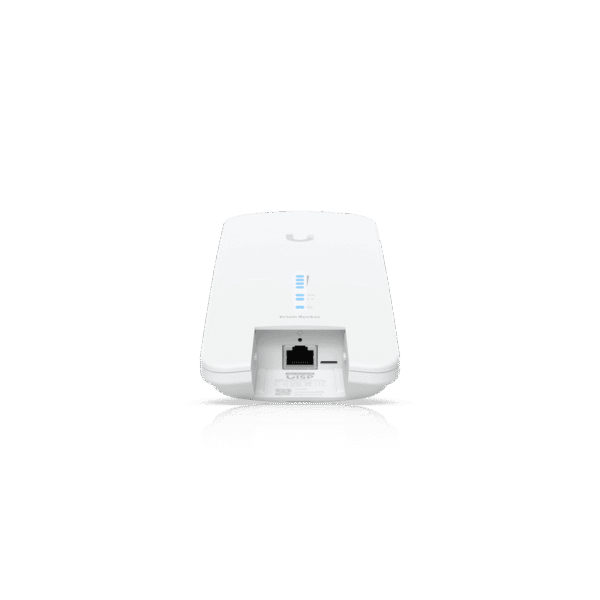

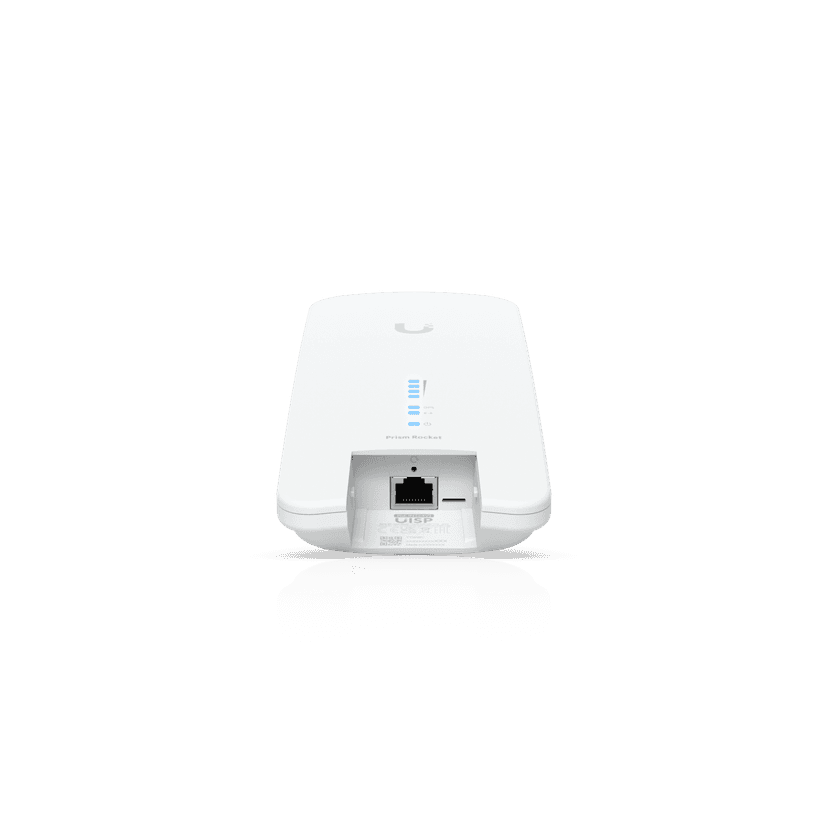

• Networking Interface: 1 × GbE RJ45 port

• Power Method: Passive PoE 2‑pair (4, 5+; 7, 8 return)

• Power Supply: 24V, 1A gigabit PoE adapter (Included)

• Supported Voltage Range: 18–27V DC

• Max. Power Consumption: 9.5W

• GPS: ✓

• RF Connections: 2 × RP‑SMA (Waterproof), 1 × GPS (Waterproof)

• LEDs: Signal Strength, Power, LAN, GPS

• Ambient Operating Temperature: -40 to 80° C (-40 to 176° F)

• Ambient Operating Humidity: 5 to 95% non‑condensing

• NDAA Compliant: ✓

• Shock and Vibration Certification: ETSI300‑019‑1.4

• Certifications: CE, FCC, IC, RoHS, Anatel: 02137‑18‑08356

Software

• Operating Modes: Access Point, Station

• Ubiquiti Specific Features: airMAX AC Mode, Discovery Protocol, Frequency Band Offset, Traffic Shaping with Burst Support, 30/50/60 MHz Channels

• Services: Bridging, DHCP, Ping Watchdog, Routing, SNMP, SSH, Webserver

• Distance Adjustment: Ackless Mode, Dynamic Ack

• QoS: WMM packet classification with user‑level priority (High, Medium, Low)

• Statistical Reporting: Data Rates, Ethernet Link Rate, Packet Errors, Up Time, Wireless Distance

System & Channel Bandwidth

• Channel Bandwidth (PtP mode): 10/20/30/40/50/60/80 MHz

• Channel Bandwidth (PtMP mode): 10/20/30/40 MHz

Radio Frequency

• Supported Frequency Range (Worldwide): 5150–5875 MHz

• US/CA (U‑NII‑1): 5150–5250 MHz

• US/CA (U‑NII‑2A): 5250–5350 MHz

• US/CA (U‑NII‑2C): 5470–5725 MHz

• US/CA (U‑NII‑3): 5725–5850 MHz

Management Radio (MHz)

• Supported Frequency Range (Worldwide): 2412–2472 MHz

• US/CA: 2412–2462 MHz
