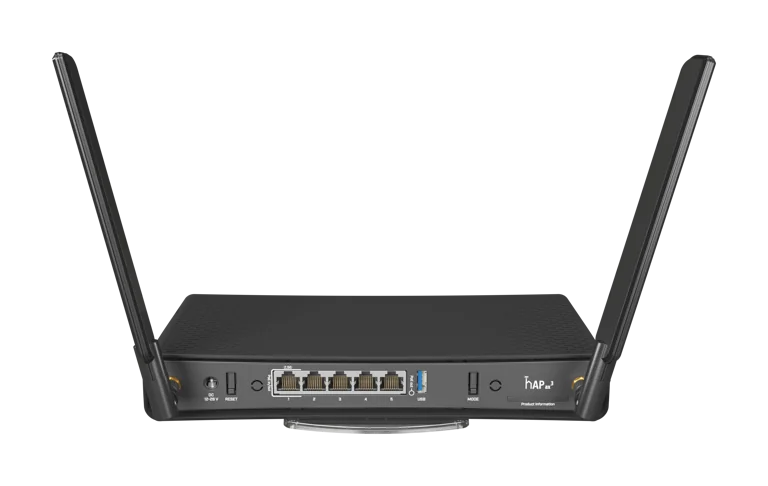

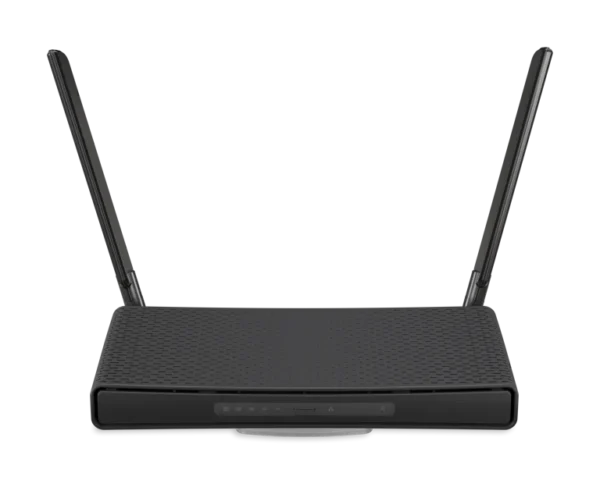

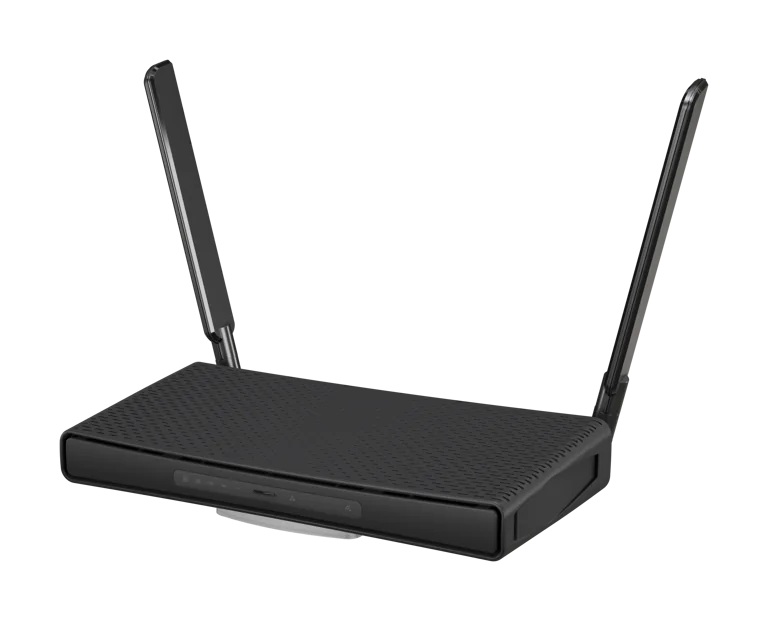

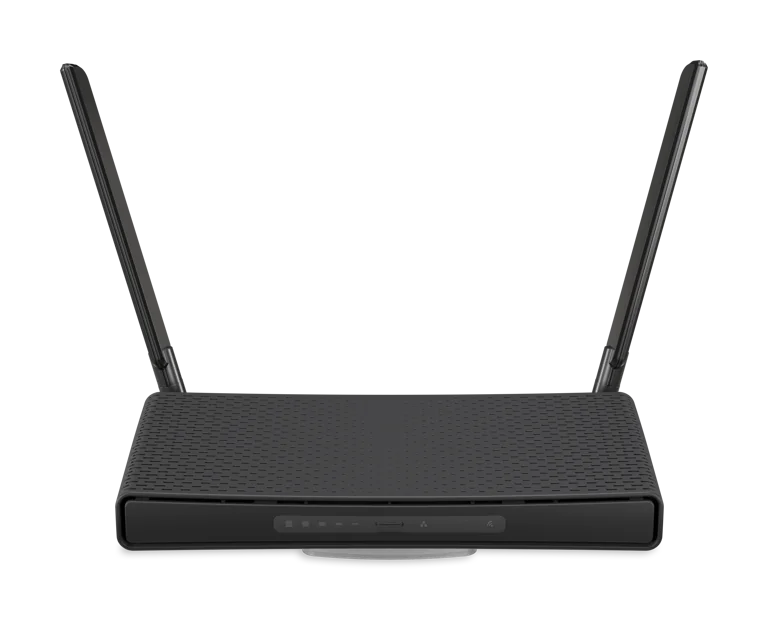

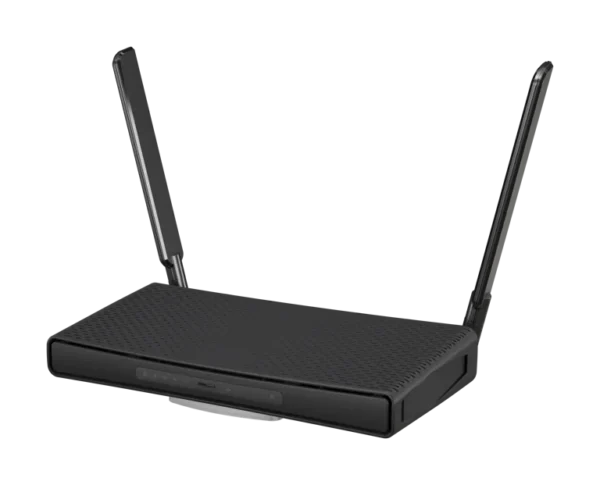

MikroTik hAP ax³ [C53UiG+5HPaxD2HPaxD]

Product Code: C53UiG+5HPaxD2HPaxD
Suggested Price: $139.00

Architecture & CPU

• Architecture: ARM 64‑bit

• CPU: IPQ‑6010, 4 cores @ 864–1800 MHz (auto)

• Switch Chip: IPQ‑6010

• RAM: 1 GB

• Storage: 128 MB NAND

• MTBF: ~200,000 hours at 25°C

• Operating Temperature: -40°C to 70°C

Physical

• IP Rating: IP20

Wireless

• Wi‑Fi 6 (AX1800)

• 2.4 GHz: up to 574 Mbit/s, 2 chains, 802.11b/g/n/ax, antenna gain 3.3 dBi

• 5 GHz: up to 1200 Mbit/s, 2 chains, 802.11a/n/ac/ax, antenna gain 5.5 dBi

Ethernet

• 4 × 10/100/1000 (Gigabit) RJ45 ports

• 1 × 2.5 Gigabit port

• 1 × Gigabit port with PoE‑out (Passive PoE, up to 0.625 A)

Peripherals

• 1 × USB 3.0 Type A (with USB Power Reset, max 1.5 A)

Power

• DC Input: 12–28 V via DC jack or Passive PoE‑IN (18–28 V)

• Max Power Consumption: 38 W (15 W without attachments)

• PoE‑out: Passive PoE on Ether1, total output 15 W

Software & License

• Operating System: RouterOS v7

• License Level: 6 (pre‑installed and licensed)

What’s Included

• 24V 1.5A power adapter

• HGO indoor antenna kit

• K‑47 wall mount set

• hAP case base

Certifications

• CE, FCC, IC, EAC, ROHS

Note: RouterOS v7 is preinstalled and licensed. Free software updates are provided for the life of the product (minimum 5 years from purchase).
