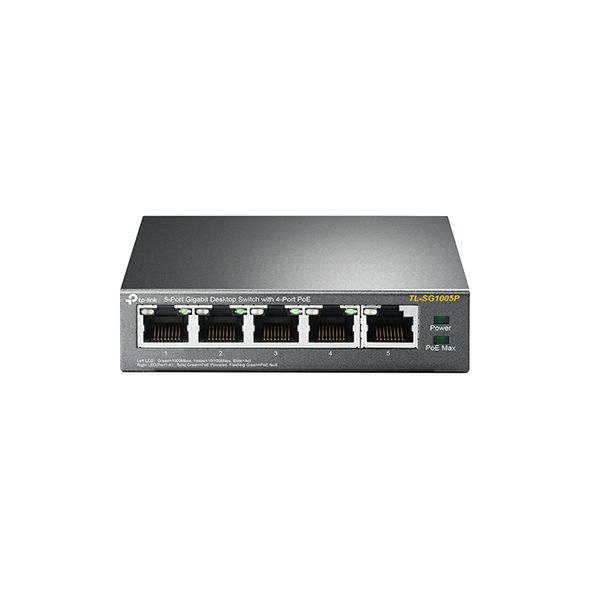

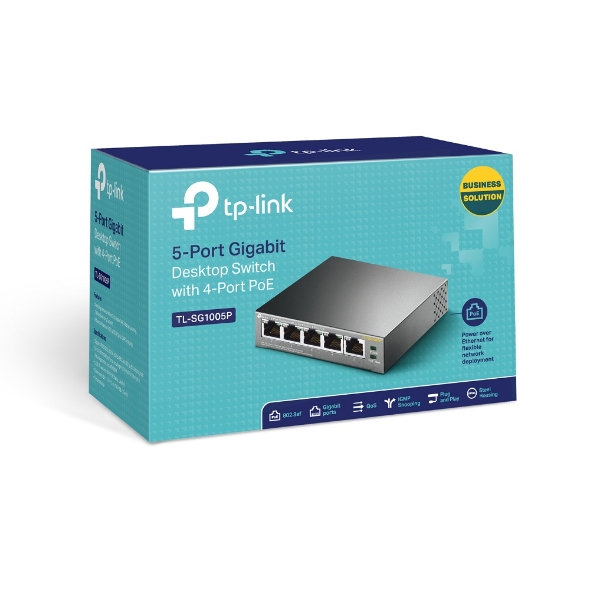

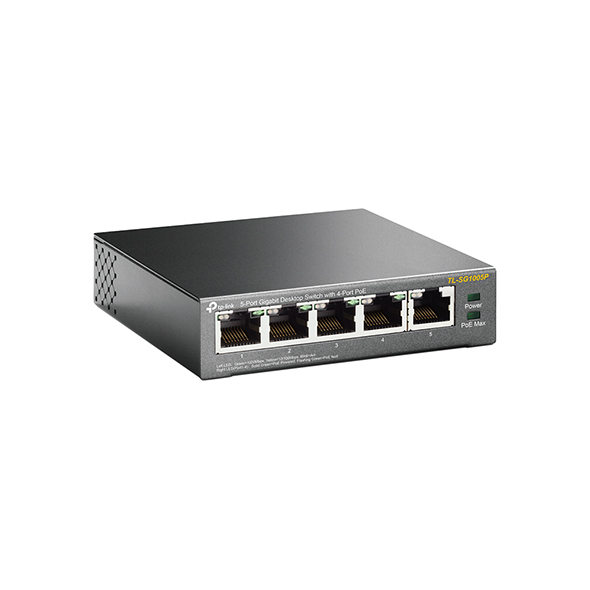

TP Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE

5‑Port Gigabit Desktop Switch with 4‑Port PoE

Hardware Features

• 5 × 10/100/1000 Mbps RJ45 ports (Auto‑Negotiation, Auto‑MDI/MDIX)

• 4 × PoE ports (Port 1–4, IEEE 802.3af compliant)

• Total PoE Power Budget: 56 W

• Switching Capacity: 10 Gbps

• MAC Address Table: 2K

• Fanless design

• Power Supply: External 48 V DC / 1.25 A adapter

• Max Power Consumption:

  • 4.0 W (no PoE load)

  • 64.4 W (with 56 W PoE load)

• Max Heat Dissipation:

  • 13.5 BTU/hr (no PoE load)

  • 219.9 BTU/hr (with 56 W PoE load)

• Dimensions: 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)

Software Features

• IEEE 802.3af compliant PD detection and power delivery

• Priority function for PoE ports

• MAC address auto‑learning and auto‑aging

• IEEE 802.3x flow control

• 802.1p/DSCP QoS for traffic prioritisation

• IGMP Snooping

• Store‑and‑forward switching

Environment

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

• Storage Temperature: -40°C to 70°C (-40°F to 158°F)

• Operating Humidity: 10% to 90% RH, non‑condensing

• Storage Humidity: 5% to 90% RH, non‑condensing

Certifications

• FCC, RoHS

What’s Included

• TL‑SG1005P Switch

• Power Adapter

• Installation Guide
