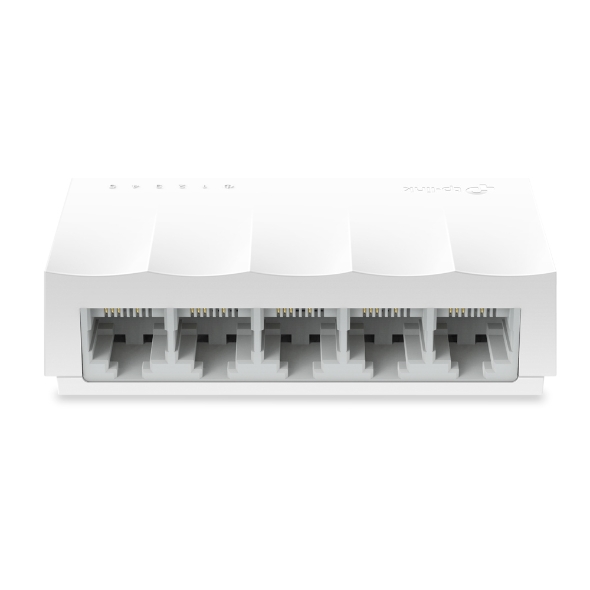

TP Link LS1005 LiteWave 5-Port 10/100 Mbps Desktop Switch

Hardware Features

• Standards & Protocols: IEEE 802.3i, 802.3u, 802.3x

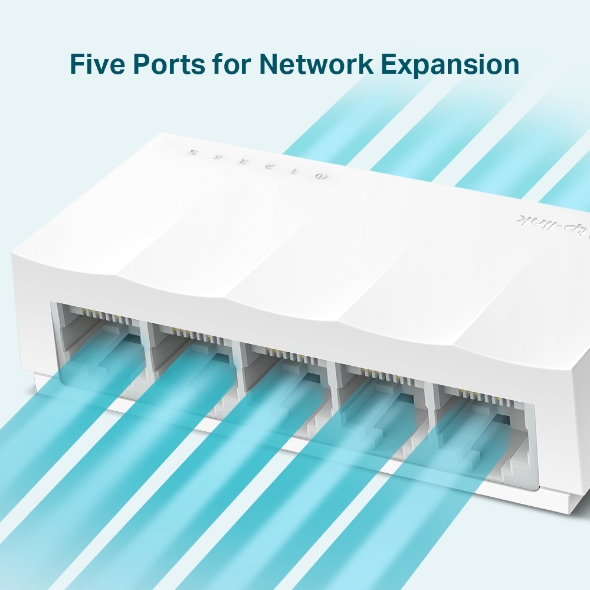

• Interface: 5 × 10/100 Mbps RJ45 ports (Auto‑Negotiation, Auto‑MDI/MDIX)

• Fan: Fanless

• Power Supply: External power adapter (Output: 5 V DC / 0.6 A)

• Dimensions: 3.3 × 1.8 × 0.9 in (83.6 × 45.7 × 22.8 mm)

• Max Power Consumption: 1.65 W

• Max Heat Dissipation: 5.627 BTU/hr

Software Features

• Advanced Features: Green Technology, 802.3X Flow Control, Back Pressure

• Transfer Method: Store and Forward

Environment

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

• Storage Temperature: -40°C to 70°C (-40°F to 158°F)

• Operating Humidity: 10% to 90% non‑condensing

• Storage Humidity: 5% to 90% non‑condensing

Certifications

• CE, FCC, RoHS

What’s Included

• 5‑Port 10/100 Mbps Desktop Switch

• Power Adapter

• Installation Guide
