Overview

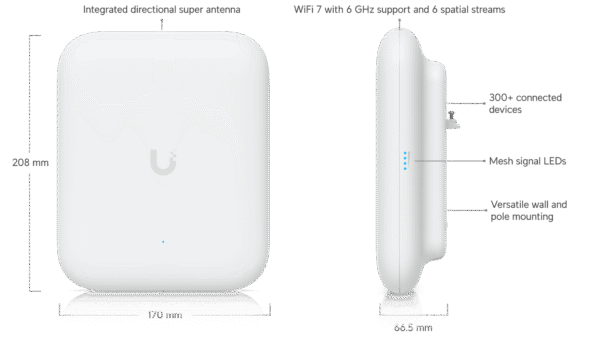

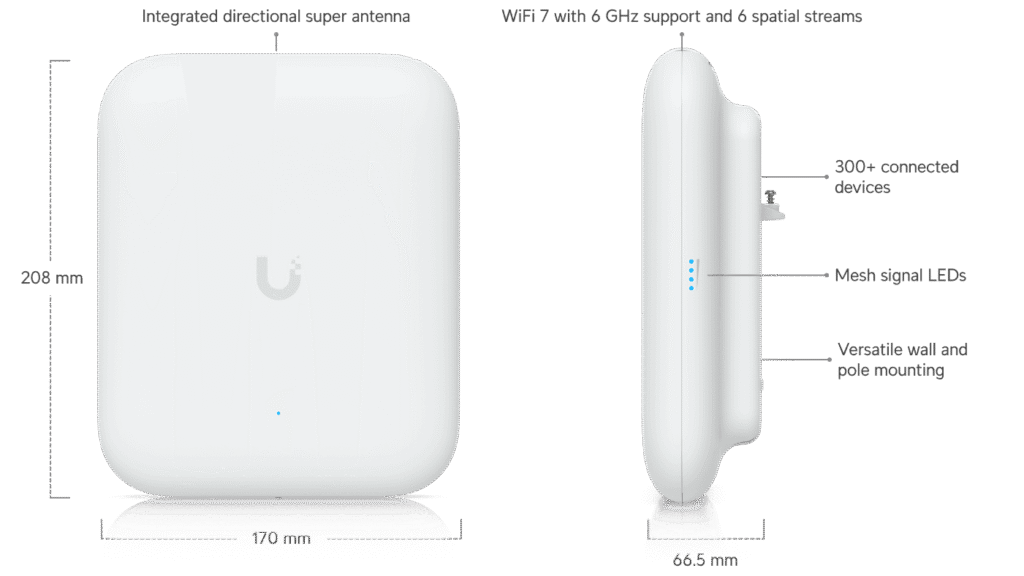

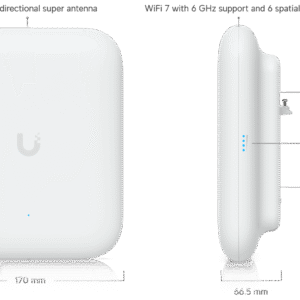

Dimensions
Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6″) With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8″)
WiFi Standard
WiFi 7
Spatial Streams
6
Coverage Area
465 m² (5,000 ft²)
Max. Client Count
300+
Uplink
2.5 GbE

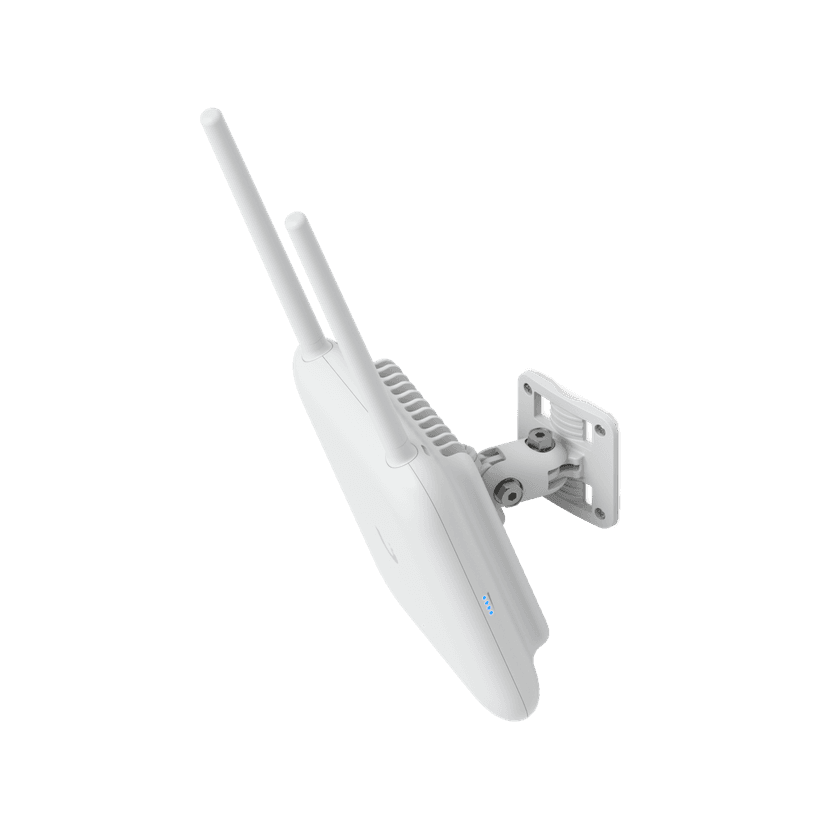

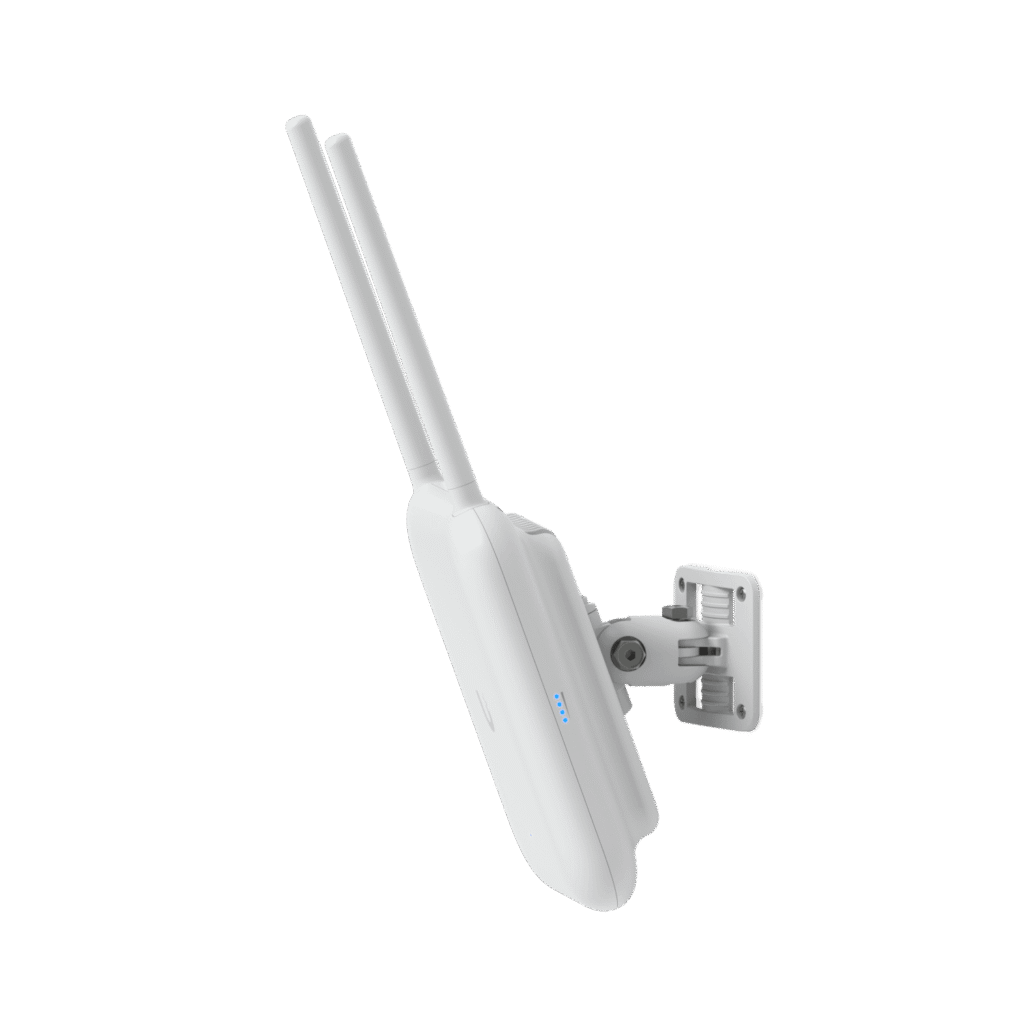

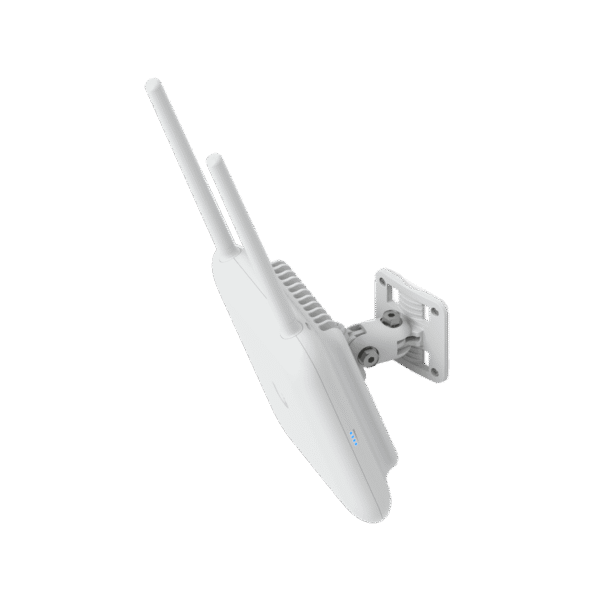

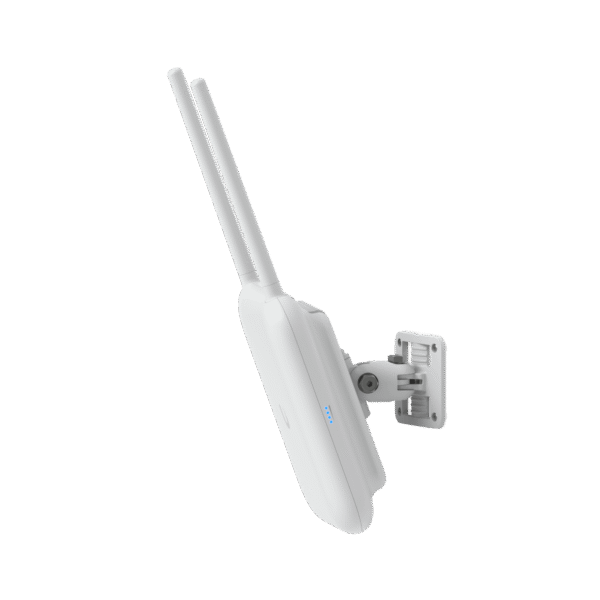

Mounting
Wall, Pole (Mounts Included)
Weatherproofing

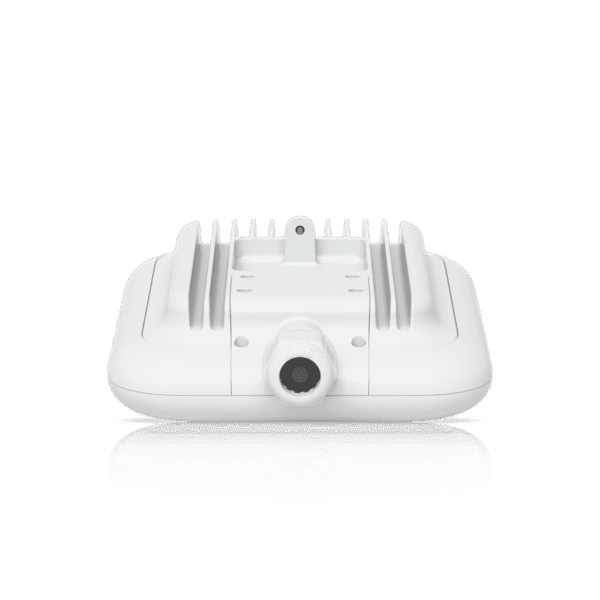

IPX6 IP67 (With cable-gland door kit)
Power Method
PoE+
Perfomance
MIMO
6 GHz
2 x 2 (DL/UL MU-MIMO)
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz
5.8 Gbps (BW320)
5 GHz
4.3 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
6 GHz
Directional internal: 10 dBi, 90° x 45°
5 GHz
Directional internal: 11 dBi, 90° x 45° External omni: 8 dBi, 360° x 15°
2.4 GHz
Directional internal: 8 dBi, 90° x 90° External omni: 6 dBi, 360° x 15°
Max. TX Power
6 GHz
26 dBm
5 GHz
26 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 5.8 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
Features
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓
Hardware
Max. Power Consumption
21W
Supported Voltage Range
42.5–57V DC

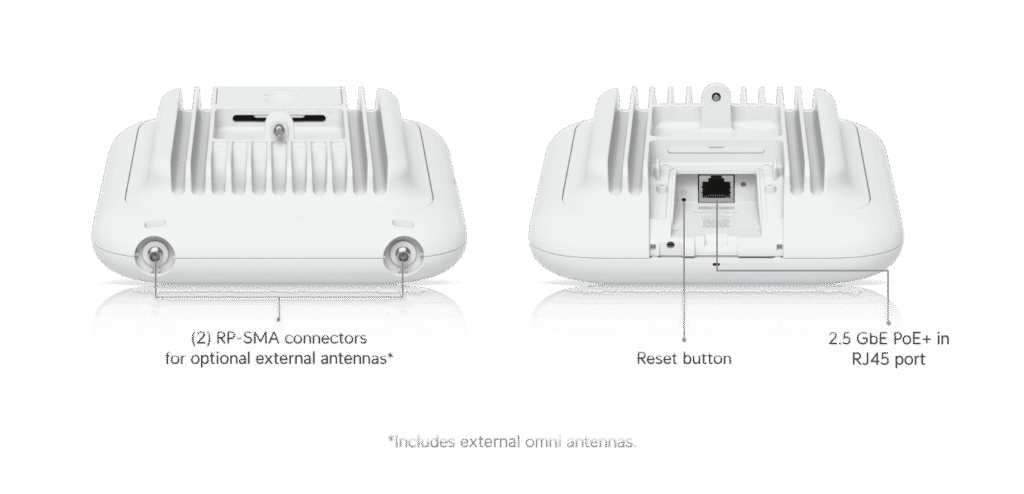

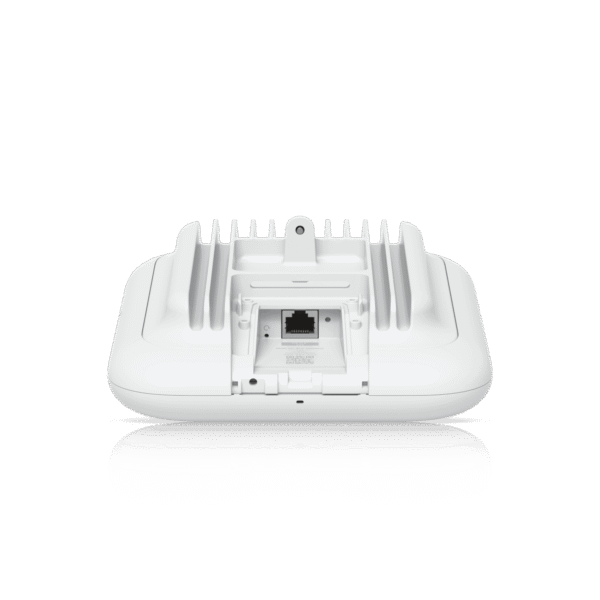

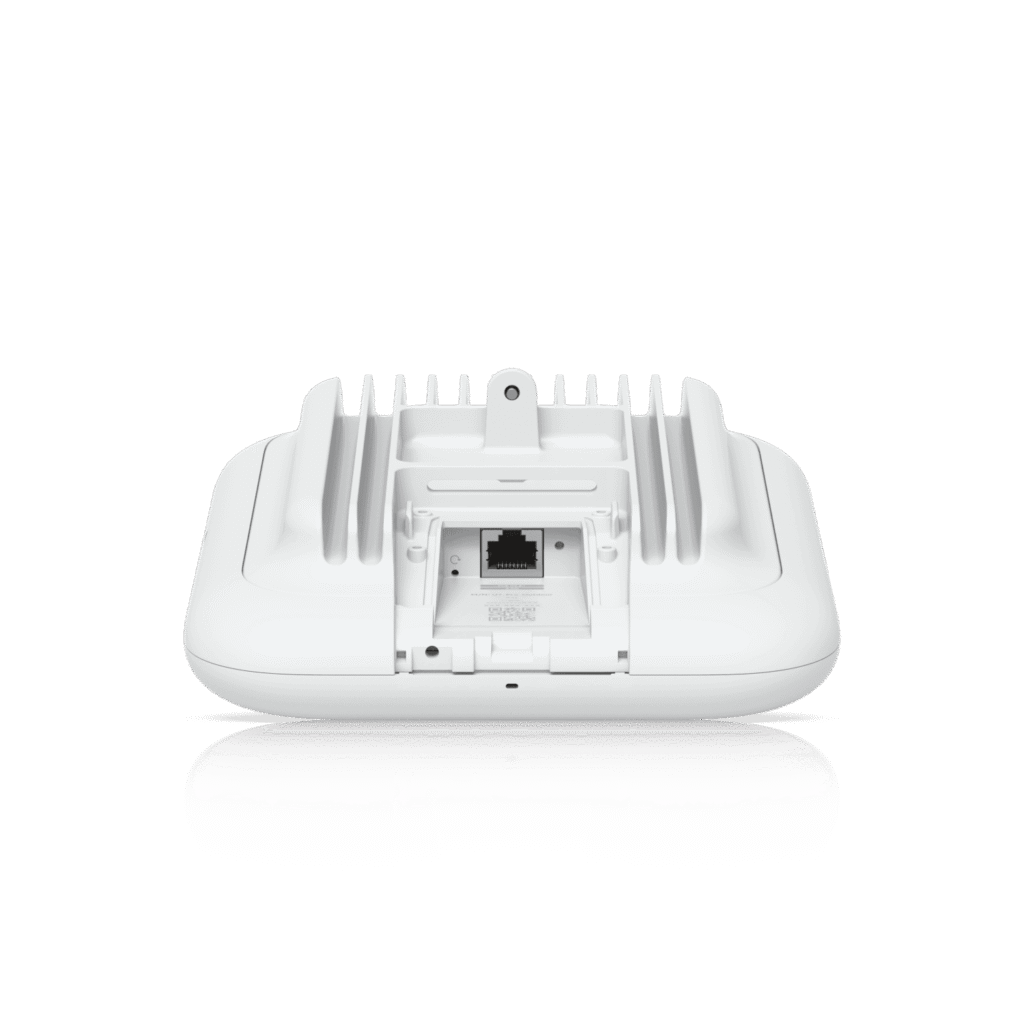

Networking Interface
(1) 1/2.5 GbE RJ45 port
Weight
Device: 1.2 kg (2.6 lb) With mount: 1.33 kg (2.9 lb)
Wind Loading
74.6 N at 200 km/h (16.8 lbf at 125 mph)
Pole Mount Diameter
1–2.5″ (25–63.5 mm)
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate, aluminum alloy
Mount Material
UV-stabilized polycarbonate

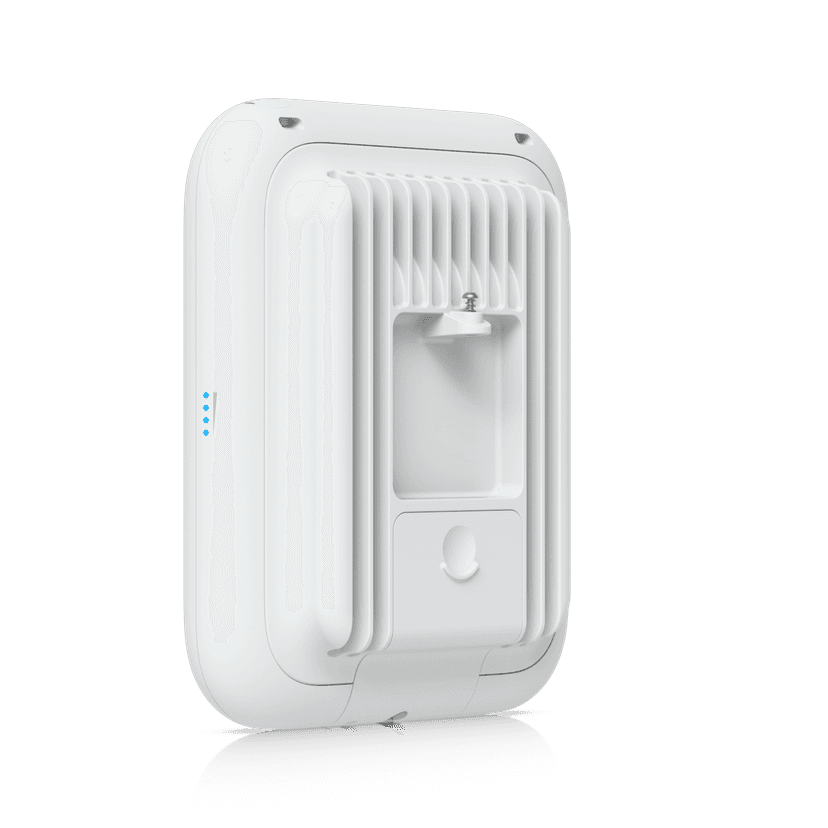

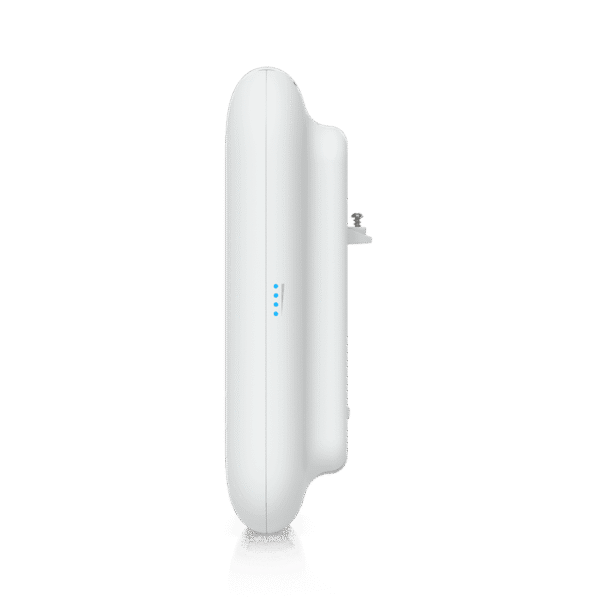

LEDs
System
(1) Power: White/Blue (4) Mesh signal: Blue
Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
FCC, IC
Software
Application Requirements
UniFi Network
Version 9.0.114 and later
Mobile App
iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
