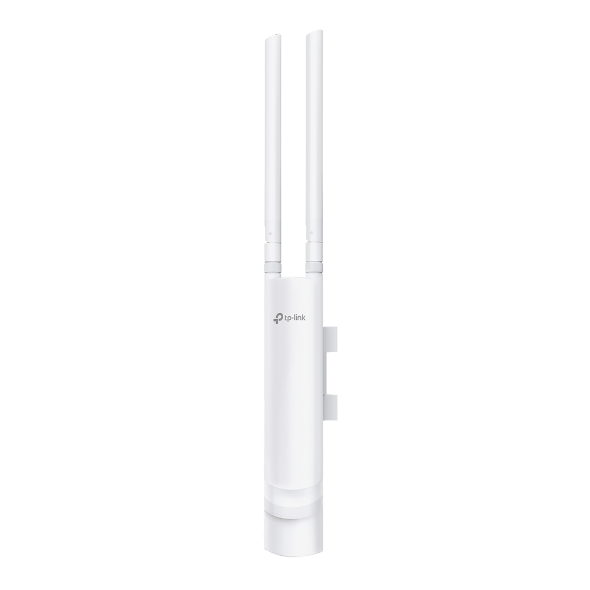

TP Link EAP110 2.4GHz N300 Outdoor Access Point

EAP110 Outdoor – 2.4GHz N300 Outdoor Access Point

Hardware Features

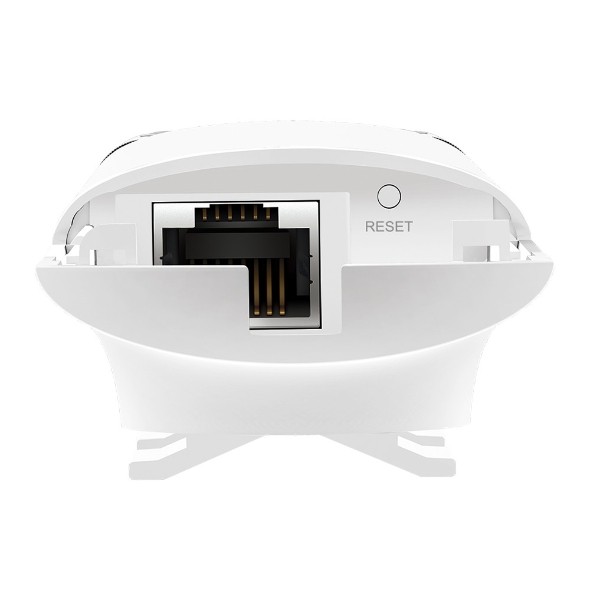

• Interface: 1 × Fast Ethernet (RJ‑45) port (supports Passive PoE)

• Button: Reset

• Power Supply: 24 V Passive PoE (PoE adapter included)

• Power Consumption: 3.1 W

• Dimensions: 8.2 × 3.7 × 1.7 in (209 × 95 × 42.6 mm)

• Antenna: 2 × 3 dBi external omni‑directional, waterproof

• Weatherproof Rating: IP65

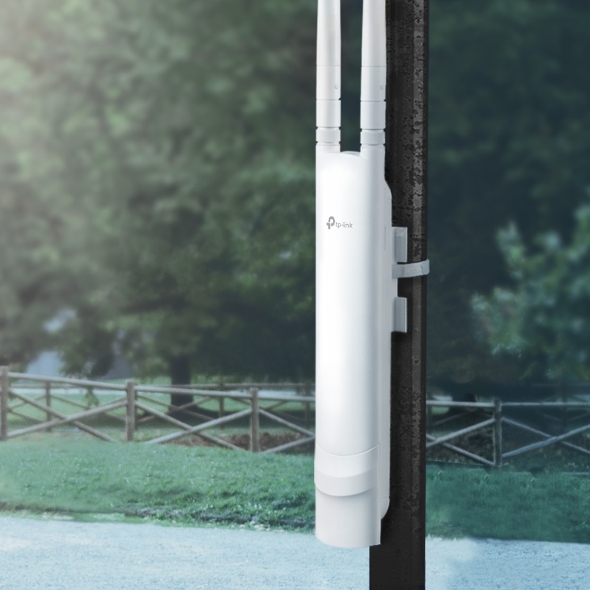

• Mounting: Pole or wall (mounting kit included)

Wireless Features

• Standards: IEEE 802.11n/g/b

• Frequency: 2.4 GHz

• Speed: Up to 300 Mbps (11n), 54 Mbps (11g), 11 Mbps (11b)

• Transmit Power: < 27 dBm

• Capacity: 100+ concurrent clients

• SSIDs: Up to 8

• Key Functions: Automatic channel assignment, transmit power control (1 dBm steps), QoS (WMM), load balance, rate limit, reboot/wireless schedule, wireless statistics (per SSID, AP, client)

• Security: WEP, WPA/WPA2 Personal/Enterprise, captive portal authentication, access control, MAC filtering, client isolation, SSID‑to‑VLAN mapping, rogue AP detection, 802.1X support

Management

• Omada App: Yes

• Centralised Management: Omada Hardware Controllers (OC300/OC200), Omada Software Controller

• Cloud Access: Yes (via Omada controllers)

• Management Protocols: SNMP v1/v2c, SSH, HTTP/HTTPS, local/remote syslog, L3 management, multi‑site management, management VLAN

• Additional: Email alerts, LED ON/OFF control, management MAC access control

Environment

• Operating Temperature: -30°C to 65°C (-22°F to 149°F)

• Storage Temperature: -40°C to 70°C (-40°F to 158°F)

• Operating Humidity: 10%–90% non‑condensing

• Storage Humidity: 5%–90% non‑condensing

Certifications

• FCC, RoHS

What’s Included

• EAP110‑Outdoor Access Point

• Passive PoE Adapter

• Power Cord

• Mounting Kit

• Waterproof Rubber Insert

• Waterproof Antennas

• Installation Guide
